Description
OCCASION A SAISIR
Type de matériel ; préamplificateur à tube haut de gamme
Marque : Audio research
Référence : REFERENCE 3
Origine de la marque et fabrication : USA
Etat : très bon état
Emballage d’origine : Oui
Accessoires et télécommande : Oui
Tarif du prix neuf : 14000€

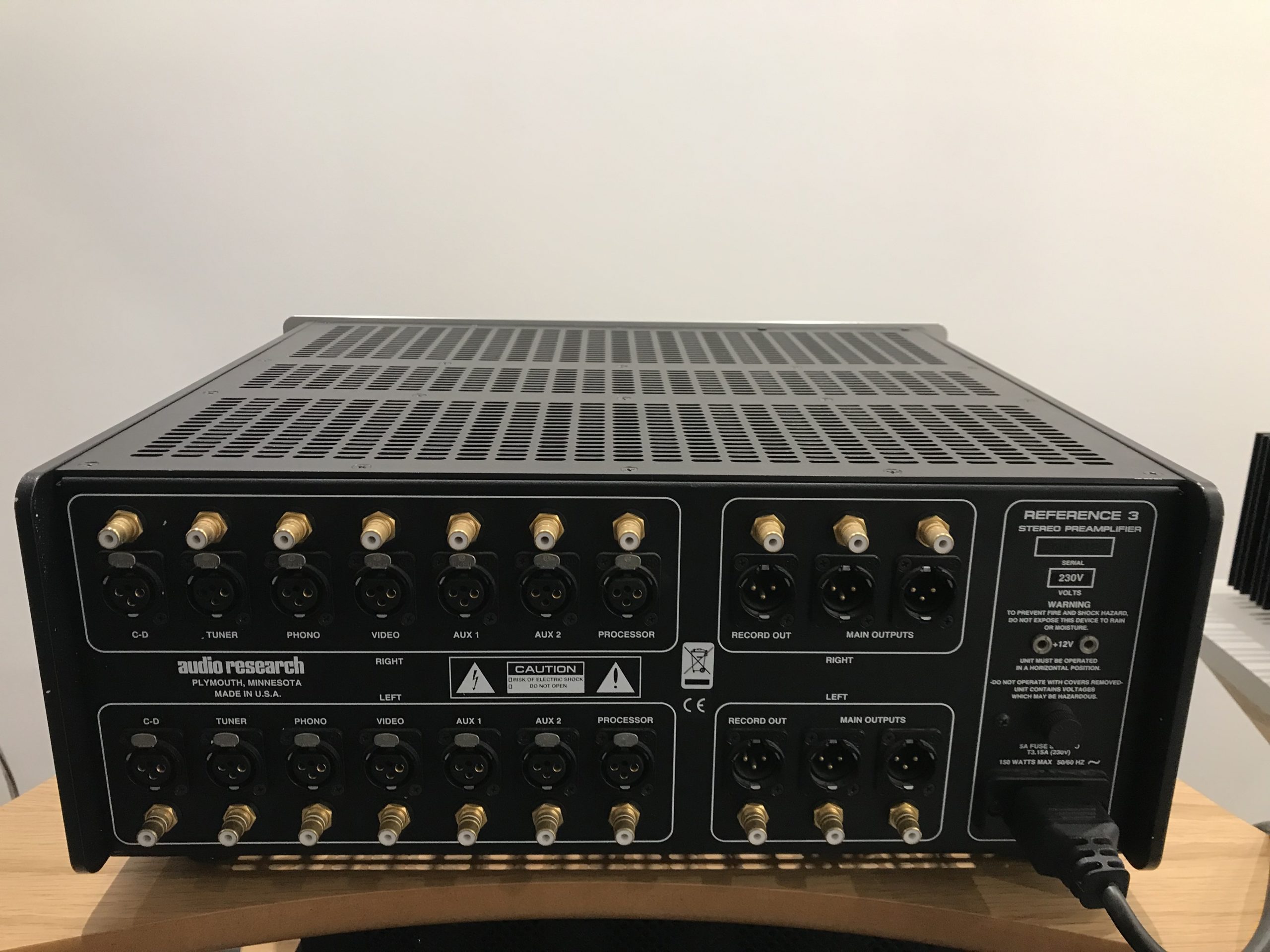

Tube remote-controlled line preamplifier with full sets of balanced and unbalanced inputs and outputs, and Processor Loop.

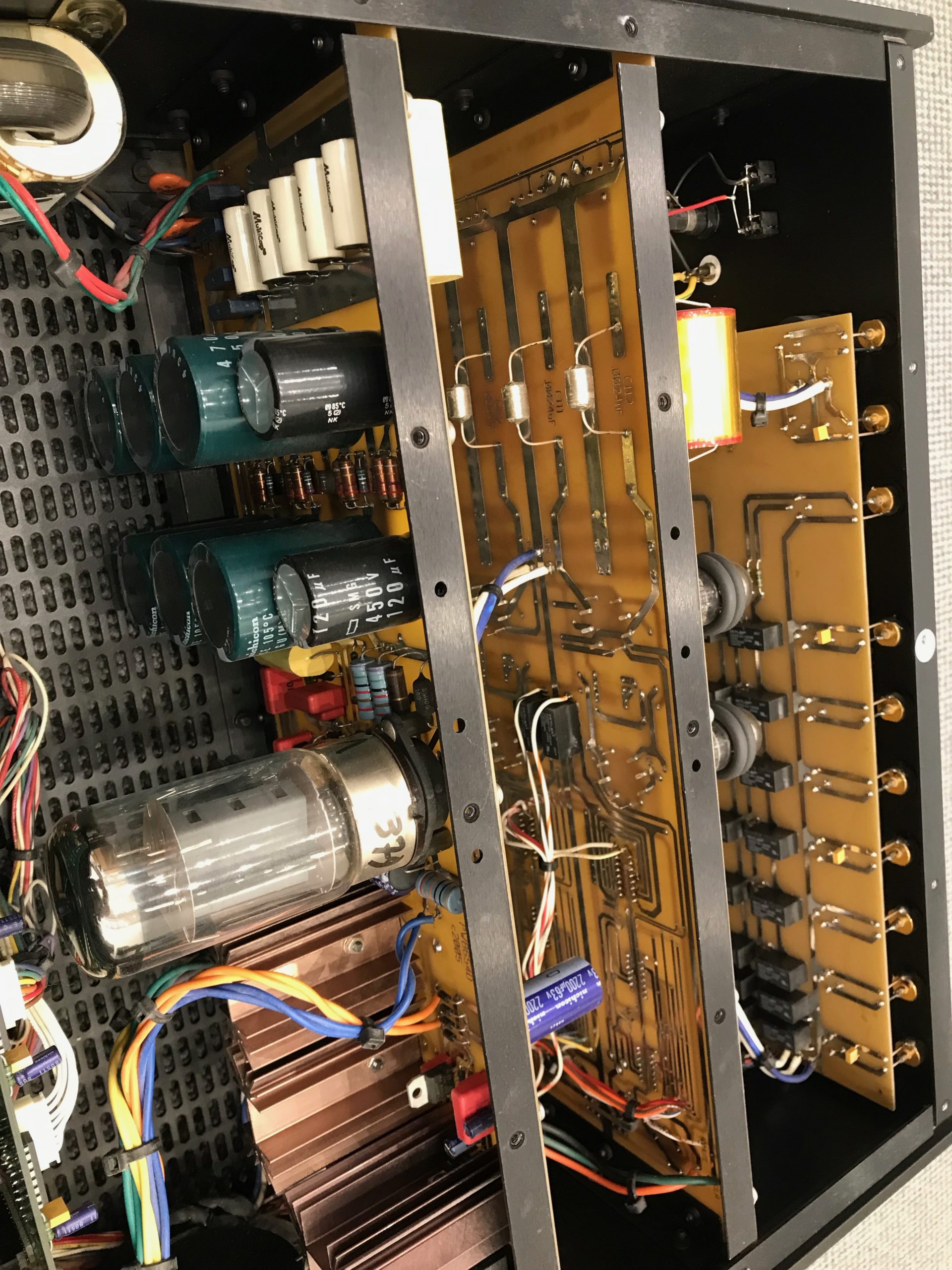

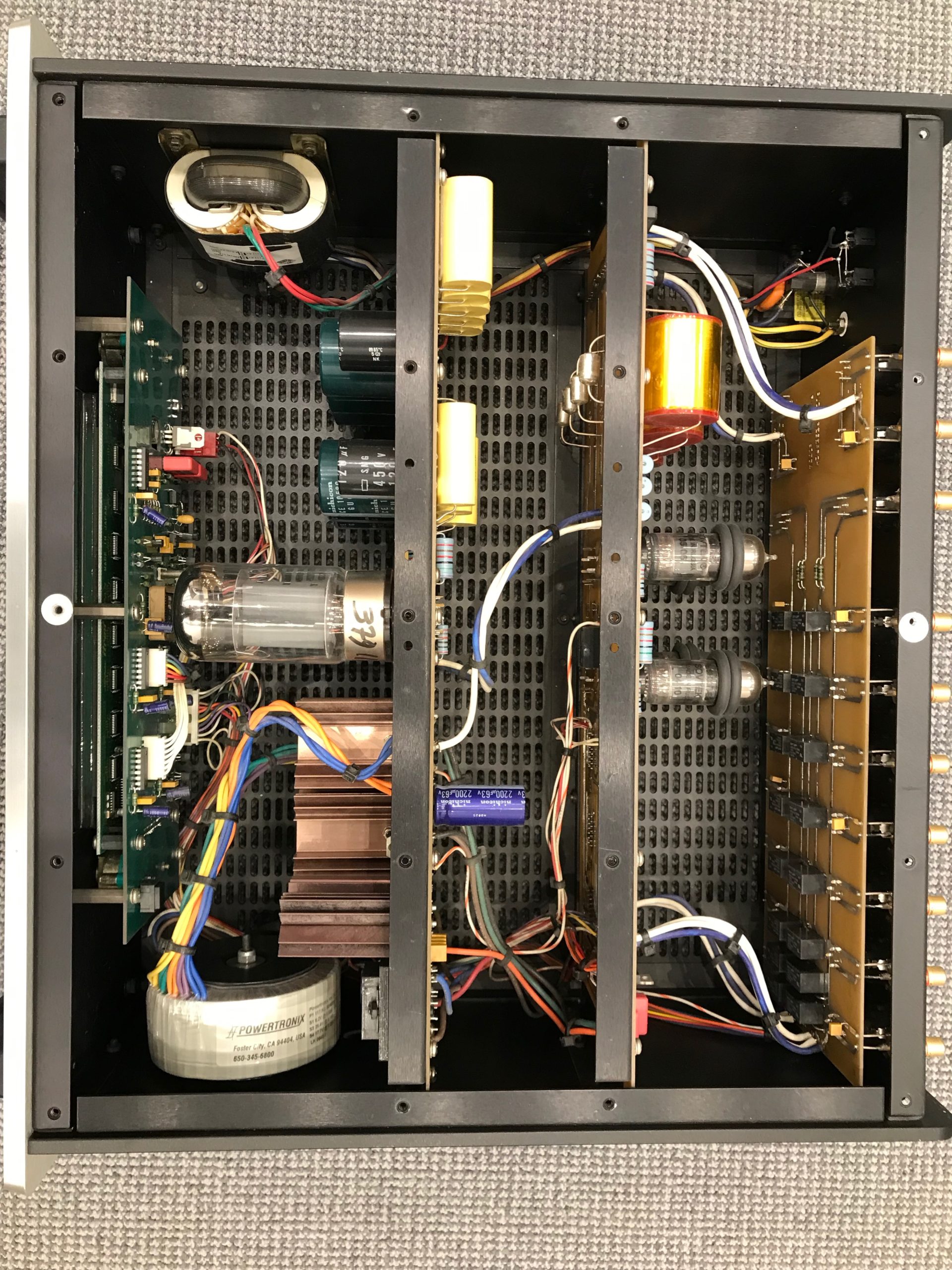

Tube complement: four 6H30P dual triodes, plus one 6550C and one 6H30P for power-supply regulation.
Maximum voltage gain: main output (single-ended or balanced input), 11.6dB; balanced output, 5.6dB single-ended output.
Frequency response: 0.2Hz–200kHz , +0/–3dB, at rated output (balanced, 200k ohms load).
Distortion: <0.01% at 2V RMS balanced output.
Input impedance: 120k ohms balanced, 60k ohms single-ended.
Output impedance: 600 ohms balanced, 300 ohms single-ended main (2), 20k ohms minimum load and 2000pF maximum capacitance.
Output polarity: noninverting.
Maximum output: 20V RMS maximum balanced, 10V RMS single-ended.
Rated output: 2V RMS (1V RMS single-ended) into 200k ohm balanced load (maximum balanced output capability is 30V RMS at <0.5% THD at 1kHz).
Noise: 2.7µV RMS residual IHF-weighted balanced noise output with volume at 1 (106dB below 2V RMS output).
Dimensions: 19″ (485mm) W by 7″ (178mm) H by 15.5″ (394mm) D. Handles extend 1.5″ (38mm) forward of front panel.
Weight: 29.6 lbs (13.5kg) net, 43 lbs (19.5kg) shipping.
